laser marking machine is a high-precision and high-efficiency industrial equipment that uses laser beams to permanently mark the surface of various materials. It is suitable for a variety of materials such as metal, plastic, glass, ceramics, etc., and can accurately engrave text, patterns, barcodes, QR codes and other contents. laser marking is non-contact, consumable-free, environmentally friendly and pollution-free. The marking is clear and durable and not easy to wear. It is widely used in electronics, automobiles, medical equipment, jewelry and other industries to meet the needs of product traceability, brand identification, anti-counterfeiting, etc.
Multiple power options: 20W/30W/50W/100W
Marking range: standard plane 110*110 customizable 150*150, 300*300mm
2-year warranty
After-sales service 7*24 hours online service
Support customization and free proofing
Email: [email protected]
1. Ultra-high configuration
Optional domestic or imported lasers and high-speed galvanometers.
2. Needs maintenance
There is no need to adjust or clean the lenses, and the average working time can reach 100,000 hours.
3. No consumables required
No consumables required, non-toxic, no environmental pollution, high environmental protection.
4. Red light positioning
The red light positioning system is adopted, which is convenient for positioning and has high positioning accuracy.
5. Extended functions
Additional functions can be extended. Such as circular marking, XY electric workbench, automatic feeding flight marking, etc.
6. Depth marking
High-speed scanning galvanometer can whiten, blacken and deepen the workpiece.
7. Computer programming
Printing is automatic, printing English, numbers, Chinese characters, graphics, and the printing content can be changed at will.
8. Multiple fonts
Common one-dimensional barcodes and DatamatrixPDF417 two-dimensional barcodes.
| Laser wavelength | 1060nm |
| Laser power | 20W or 30W or 50W or 100W |
| Laser type | Pulsed or continuous |
| Marking depth | < 0.5mm Marking |
| Line speed | ≤7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.012mm |
| Repeatability | 0.002 |
| Marking range | Customizable |

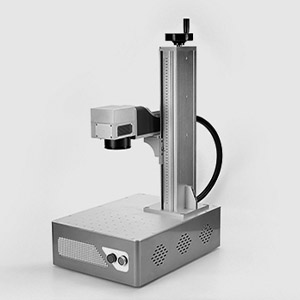

The machine weighs only 25 kg and can be put into a suitcase for easy carrying.

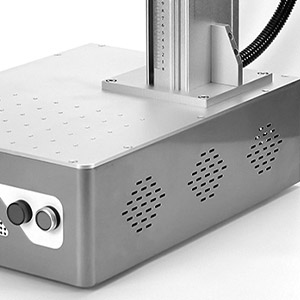

And heat sink position design, CANMAKE motor motherboard temperature control balance, so that the machine can run for a long time.

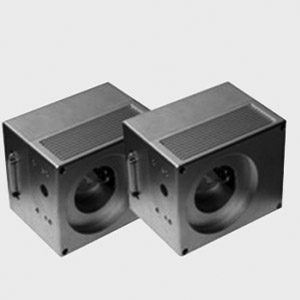

This machine uses SINOGALVO high-speed galvanometer to ensure the stability of the printing process.
This machine uses SINOGALVO high-speed galvanometer to ensure the stability of the printing process.
Marking of various metals and some non-metals metal alloy materials, plastics, rubber, leather and other materials.
Meets high-speed production requirements in the automotive, electronics and medical industries
Can be engraved with patterns, text, Dat matrix QR codes, serial numbers, counters, dates, shifts, variables, etc
Meet the high-speed production requirements ofautomobile,electronics, medical machinery processing, etc
