Laser marking machines can mark a variety of content, including text, graphics, barcodes, and QR codes. Common marking content includes product name, production date, batch number, company logo, design pattern, and safety warning. These functions make laser marking machines play an important role in traceability management and brand recognition.
In addition, laser marking machines can achieve clear and lasting marking on a variety of materials, such as metal, plastic, glass, wood, etc. This high precision and flexibility make it widely used in industries such as manufacturing, electronics, medical and consumer products, meeting the needs of different fields for identification.
Our customized services:
Support OEM/ODM

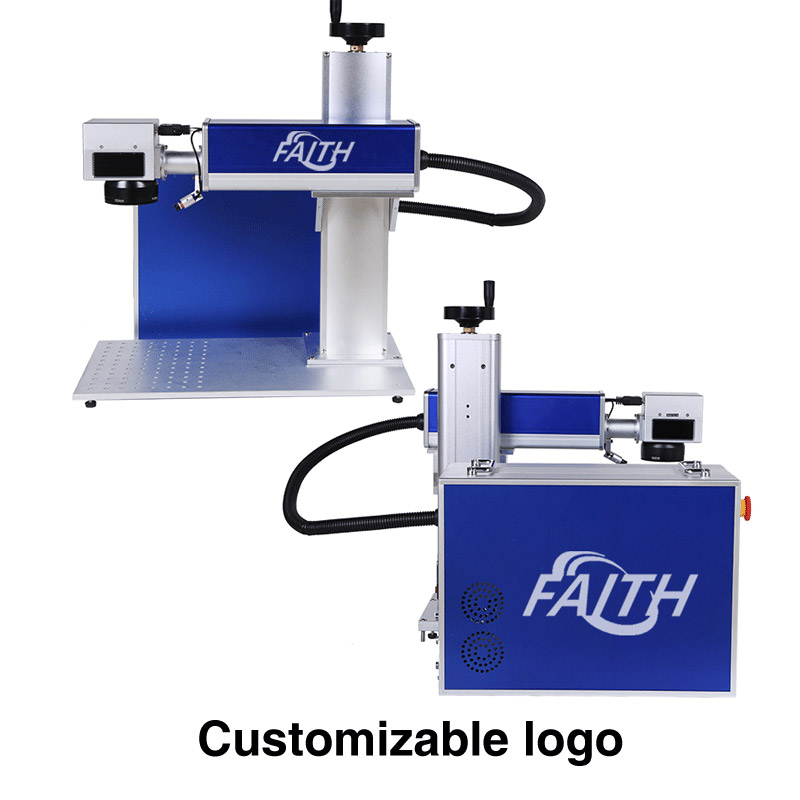

Support customized LOGO
Support support frame heightening
Support customized multi-language
Support customized protective cover
Email: [email protected]
1. Multilingual support:
Any language installed in a printable operating system.
2. Contact less printing:
No mechanical stress on the surface of the object.
3. Permanent identification:
If it is not deliberately damaged, the content of the mark will never disappear.
4. Adjustable printing parameters:
Laser power and marking frequency can be adjusted at any time.
5. No consumables required:
The laser marking machine only consumes electric energy, not any other consumables.
6. Easy to maintain:
The field mirror only needs to be properly dustproof at ordinary times without special maintenance.
7. Support Multiple File Formats:
Support PLT, PCX,DXF,BMP and other files, and directly use SHX, TTF libraries. Support barcode font, set automatic serial number, date and time according to production needs.
| Laser wavelength | 1060nm |
| Laser power | 20w/30w/50w/60w/70w/100w |
| Laser type | Pulsed or continuous |
| Marking depth | ≤0.5mm Marking |
| Line speed | <7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.012mm |
| Marking range | Customizable |
| Repeatability | + 0.002 |
Through visual adjustment of red light, the maximum focal length can be accurately positioned to make the laser beam reach the maximum value.
Red light generates a rectangular frame to clearly show the specific printing range, what you see is what you get.
Support PLT, PCX, DXF, BMP and other files, and directly use SHX.TTF library. Support barcode fonts, and can set automatic serial number, date and time according to production needs.
The machine adopts sinogalvo high-speed galvanometer to ensure the stability of the printing process.
This machine uses Singapore wavelength high transmittance galvanometer. By replacing the galvanometer, the printing range can be adjusted between 12*12cm and 40*40cm.
It is applicable to all metal materials such as steel, iron, copper, aluminum, gold, silver, and some non-metal materials such as PC and ABS. It is mainly used in fields with high requirements for smoothness and fineness, such as electronic products, hardware sanitary ware, watches, jewelry, etc.
The machine can be connected with a rotary to print cylindrical or curved objects, further expanding the scope of use.
For more information, inquiries or to request sample marking, please send an email to [email protected] or fill out the form:
