Product detail

Working Video

Product Features

1. Handheld operation for welding, flexible and convenient, capable of welding at any shape and angle.

2. The device is compact and easy to move. lt is convenient for long-distance welding of large work pieces, also can work outdoors.

3. Fast welding speed, more than 5 times efficiency that of arc welding.

4. Welding speed is fast, and the efficiency is more than 5 times that of arc welding.

5. The weld seam is beautiful, with small deformation, saving the cost of subsequent polishing and shaping.

6. High reliability, long service life, pump source service life>100000 hours.

Product Parameters

Model	DH-1000W	DH-1500W		DH-2000W		DH-3000W
Rated output power	1000W	1500W		2000W		3000W
Output fiber length	1080(±10nm)
Welding thickness	0.3mm-3mm	0.3mm-4mm		0.3mm-5.5mm		0.3mm-7mm
Power demand	220V±100V	220V±10V		220V±10V		380V±10V
Indicator light	Red light
Cooling method	Water-cooling
Maximum support air pressure	100bar
Overall power	5KW		7KW		9KW		11KW
Working mode	Continuous/Modulation
Environment	Flat, no shocking and impact
Working humidity (%)	<70
Working environment humidity(° C)	-10-45
Machine net weight	169KG		175KG		208KG		227KG
Gross weight	248KG		255KG		279KG		310KG
Dimensions	980mm600mm1150mm				1085mm700mm1150mm
Wooden box size	1360mm700mm1290mm				1420mm700mm1290mm

Product Detail

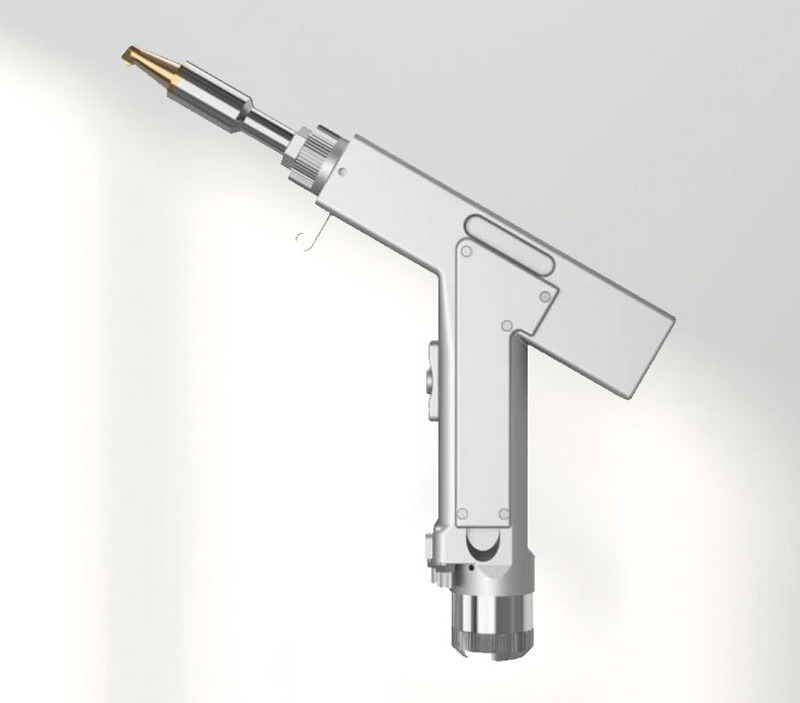

1.Applicable range 3000w
2.Collimation focal length D16F60mm
3.Focus focal length D20F150mm
4.Maximum air pressure 15Bar
5.Vertical adjustment range line+10mm
6.Spot adjustment range line0-5mm
7.Applicable wavelength 1070mm
8.Weight 0.75kg

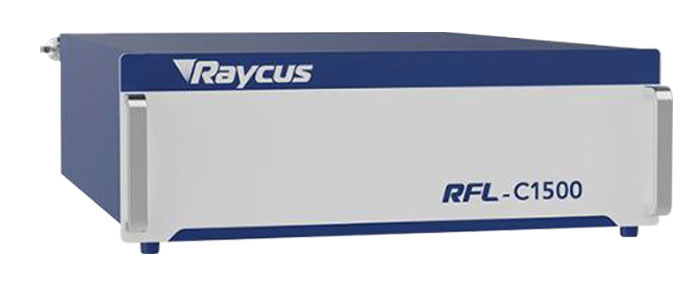

1.High -power light conversion efficiency
2.Exempt operation
3.QBH connector
4.Butput optical fiber length can be customized
5.Wide -adjusting frequency range
6.Resistance
7.Plate cutting high efficiency

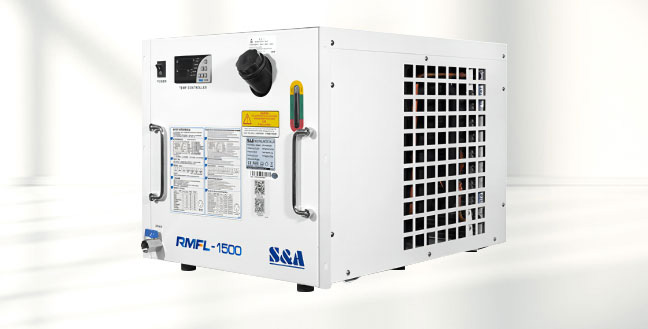

1. Temperature control accuracy can reach 0.5°C;
2. Environmentally friendly refrigerants can be selected;
3. The laser chiller intelligent temperature controller has two temperature control modes, suitable for different occasions; with multiple settings and fault display functions,
4. Dual temperature and dual control mode to meet the different cooling requirements of fiber lasers and welding heads;
5. With multiple alarm protection functions: compressor delay protection; compressor overcurrent protection; water flow alarm; temperature over-high/over-low alarm;
6. Multi-national power supply specifications; lS09001 certification, CE certification, RoHS certification, REACH certification;
7. Stable cooling and easy operation;

Product Application

Suitable for welding various metal materials, including carbon steel, stainless steelhigh-strength steel, aluminum, copper, and alloy materials;

Product Application

Wide range of cleaning applications in the industry
