The flying fiber split laser marking machine can be used for production line operation and is widely used in electronic products, motors, batteries, hardware, auto parts, stainless steel products and other industries.
The laser has a service life of more than 100,000 hours and supports 20W/30W power
It has a missed detection function and supports multiple languages. The excitation head weighs 6.5kg and the flying bracket weighs 30kg. The minimum line width is 0.0012mm
After-sales service: 7×24 professional after-sales online support
Warranty: 2-year warranty
Support customized services
Support free proofing
Support OEM/ODM
Factory direct sales, preferential prices
Email: [email protected]
1. Permanent marking, not easy to be altered twice, high difficulty in anti-counterfeiting and cross-product.
2. No worries caused by dust blockage, the whole machine is maintenance-free
3. No consumables are required, and the service life can reach more than 100,000 hours.
4. The dual red light focusing function greatly reduces the difficulty of operation for workers,
5. Text, graphics, automatic date, shift, serial number, QR code and other information can be edited.
6. One machine has two uses, it can cooperate with the production line to spray code online, or it can be static fixed spray code,
7. Deep marking: high-speed scanning galvanometer can mark the workpiece white, black, and deep.
8. Red light positioning: adopts red light positioning system, which is convenient for positioning and has high positioning accuracy.
| Laser wavelength | 1060nm |
| Laser power | 20W or 30W or 50W |
| Laser type | pulsed or continuous |
| Marking depth | ≤0.5mm marking |
| Line speed | ≤7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.012mm |
| Repeatability | ±0.002 |
| Marking range | Customizable |
1. Communication software: Data communication is carried out through serial port or network port, and it comes with single-machine and dual-machine encoding software.
2. Visual rejection: It comes with visual communication protocol, and users can choose this function to achieve seamless integration.
3. Remote control: It can be linked with the host computer through Ethernet to achieve remote operation in different places.
4. Protection level: The overall protection level of the controller reaches IP55.
 |
 |
 |
| Clefine touch control system | Singapore wavelength field mirror | Independent power control box |
 |
 |
 |
| MW Industrial DC Switching Power Supply | Standard photoelectric switch andsynchronizer | Two-dimensional lifting bracket |
 |
 |
 |
| Siemens switch | High-speed scanning galvanometer | Top-notch fiber laser |

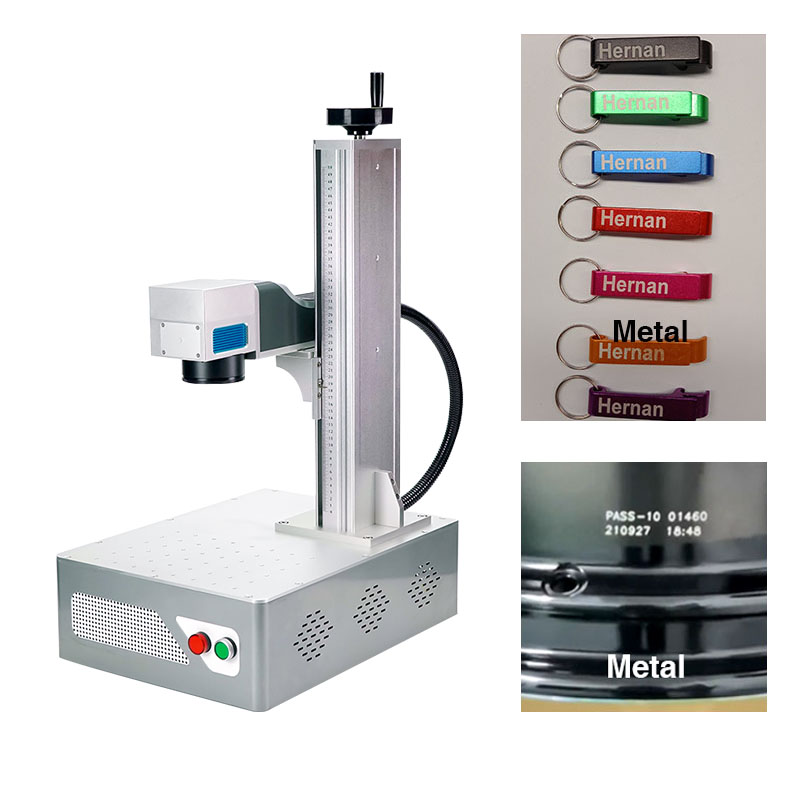

Laser marking machines can mark common metals, rare metals and alloys, alloy powders, ceramic materials, surface-treated metals, oxides, plastics and other materials.
Meet the high-speed production requirements ofautomobile,electronics, medical machinery processing, etc
