Stainless steel metal laser marking machine, through the evaporation of surface materials to expose the deep material, or through the light energy to cause chemical and physical changes in the surface material to "carve" out traces, or through the light energy to burn certain materials to show the desired pattern, characters, etc. This machine can engrave numbers, text, logos, batch numbers, barcodes, variable QR codes, variable files, etc. It provides unparalleled marking accuracy and durability in the metal industry, meets key industry requirements, and improves overall product quality.
Our advantages:
14 years of focus on coding
Support 7×24 hours technical support
2 years of after-sales service
Delivery within 30 days
Support LOGO customization
Support free proofing
More than 200 export countries
Support customized services and product training
CE and RoHs, 16 authoritative certificates
Email: [email protected]
1.Professional process research and development to avoid the problem of yellowing and blackening of cutting edges caused by traditional laser cutting.
2. High-performance motherboard, anti-interference, more sufficient data output, continuous carving after interruption, and slope carving.
3. Fast curve cutting function, any curve can be cut quickly and continuously
4. Equipped with power, frequency and speed following functions to effectively reduce corner trimming burrs. Corner energy follows the count, making sharp corner cutting technology more perfect.
5. Path optimization solutions can be designed in the software as needed to shorten processing time and improve efficiency.
6.Cameras, stainless steel floors and other components can be added according to needs or industries to improve technology or efficiency.
 |
 |
| Support LOGO customization | Support large area marking |
 |
 |
| Support protective cover customization | Support stand heightening |
| Laser wavelength | 1060nm |
| Laser power | 20w/30w/50w/60w/70w/100w |
| Laser type | Pulsed or continuous |
| Marking depth | ≤0.5mm Marking |
| Line speed | <7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.012mm |
| Marking range | Customizable |
| Repeatability | + 0.002 |
It is applicable to all metal materials such as steel, iron, copper, aluminum, gold, silver, and some non-metal materials such as PC and ABS. It is mainly used in fields with high requirements for smoothness and fineness, such as electronic products, hardware sanitary ware, watches, jewelry, etc.
Auto Parts Hardware Products
Jewelry Craft Gifts Other

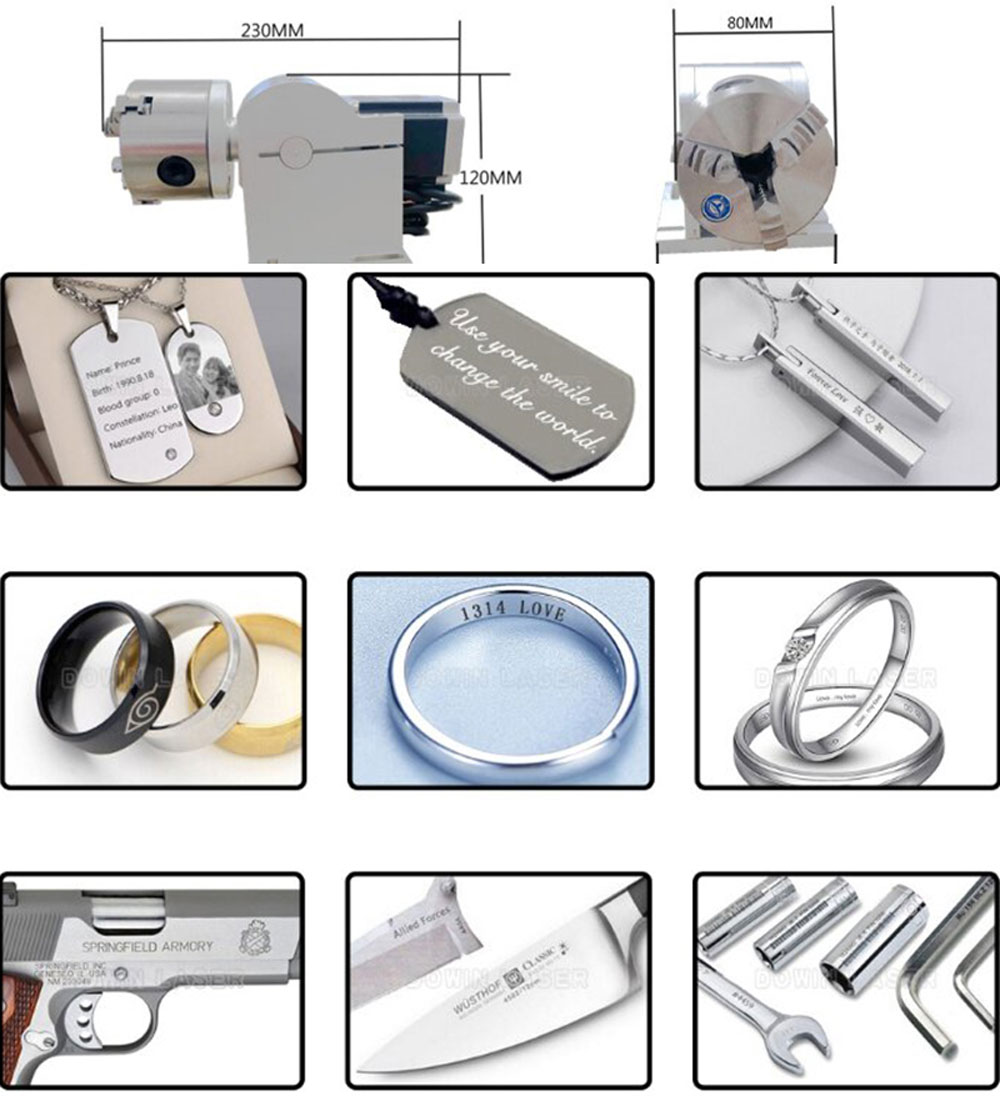

The machine can be connected with a rotary to print cylindrical or curved objects, further expanding the scope of use.
Through visual adjustment of red light, the maximum focal length can be accurately positioned to make the laser beam reach the maximum value.
Red light generates a rectangular frame to clearly show the specific printing range, what you see is what you get.
Support PLT, PCX, DXF, BMP and other files, and directly use SHX.TTF library. Support barcode fonts, and can set automatic serial number, date and time according to production needs.
The machine adopts sinogalvo high-speed galvanometer to ensure the stability of the printing process.
This machine uses Singapore wavelength high transmittance galvanometer. By replacing the galvanometer, the printing range can be adjusted between 12*12cm and 40*40cm.
