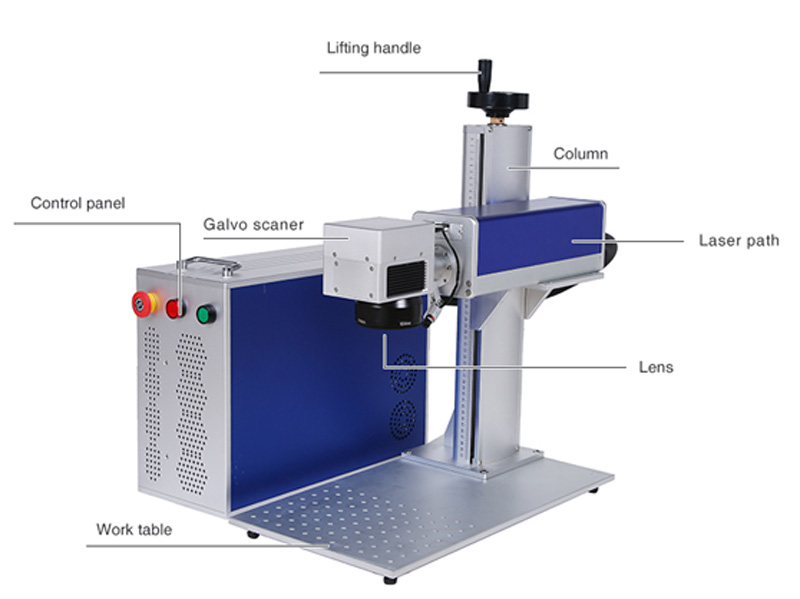

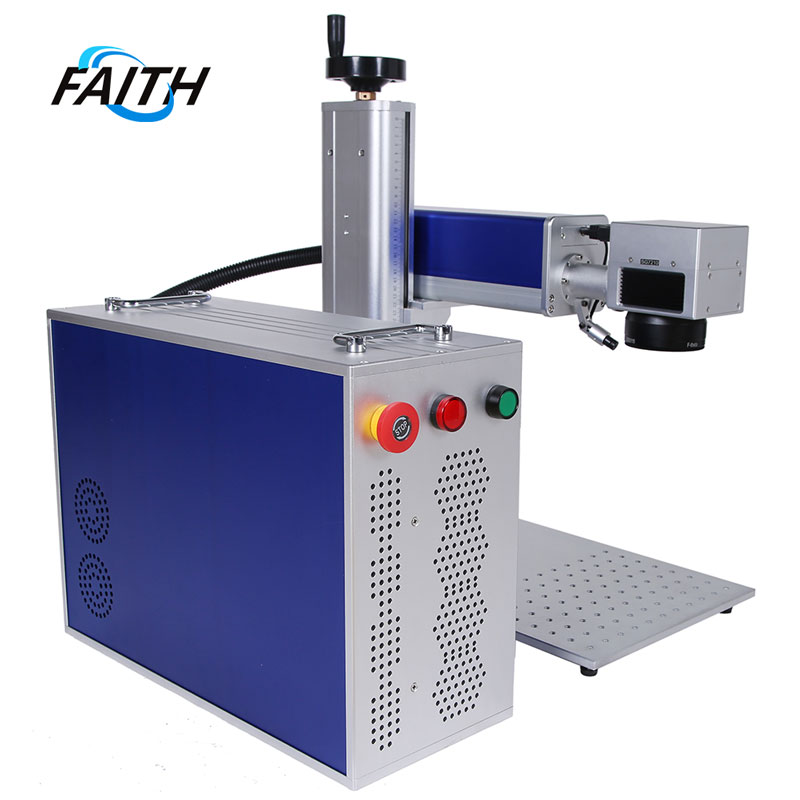

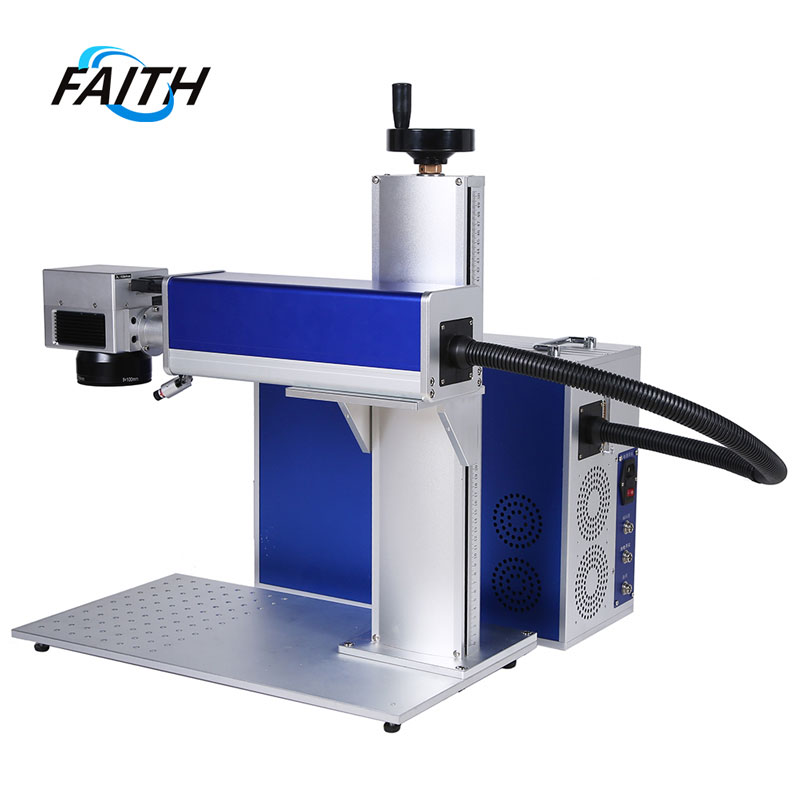

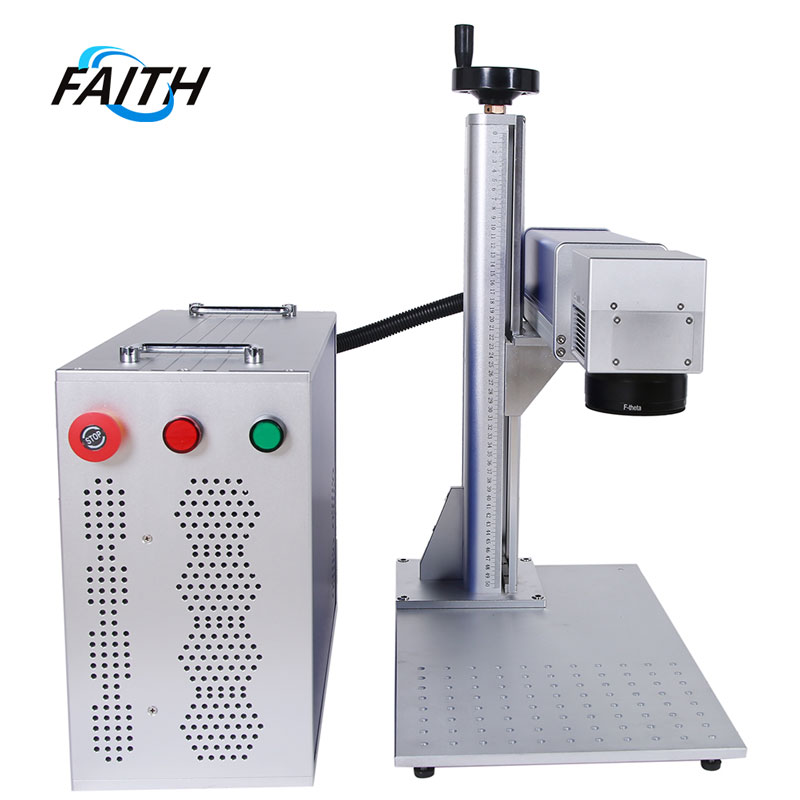

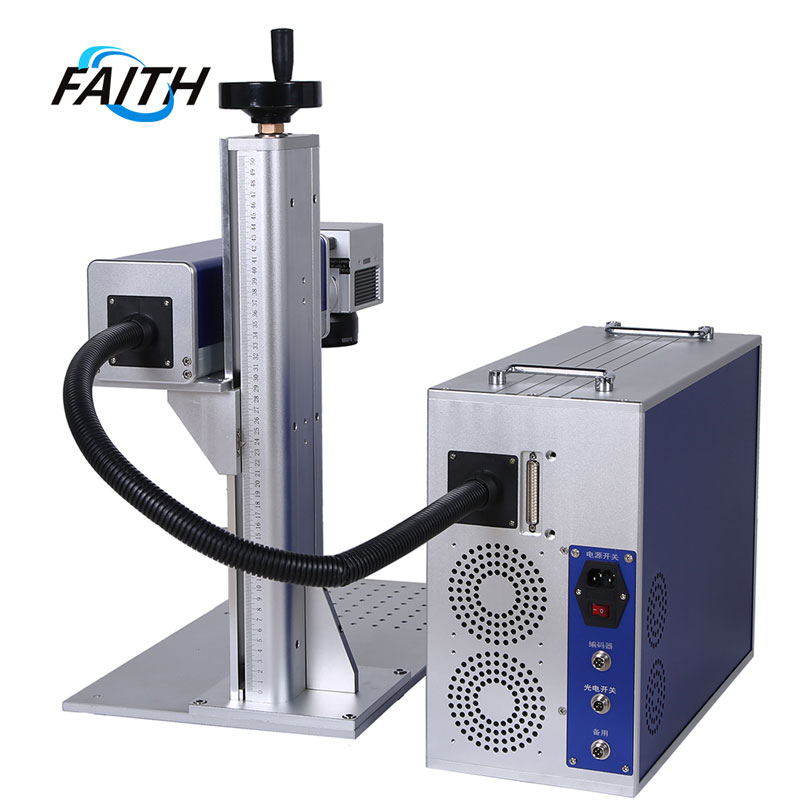

Convenient split Laser marking machine, best for metal/glass/plastic marking, suitable for iron, copper, aluminum, silver and other metal materials. The machine has stable performance, long service life, can run continuously for 24 hours, good beam quality, no consumables, and supports multi-language switching.
After-sales service: 7×24 professional after-sales online support
Warranty: 2-year warranty
Support customized services
Support free proofing
Support OEM/ODM
Factory direct sales, preferential prices
Email: [email protected]
1. Ultra-high configuration
Optional domestic or imported lasers and high-speed galvanometers.
2. No maintenance required
The laser does not require maintenance, nor does it need to adjust or clean the lens. Its average working time can reach 100,000 hours.
3. No consumables required
No consumables are required, non-toxic, no environmental pollution, and highly environmentally friendly.
4. Red light positioning
The red light positioning system is adopted, which is convenient for positioning and has high positioning accuracy.
5. Extended functions
Additional functions can be extended. Such as circular marking, XY electric workbench, automatic feeding flight marking, etc.
6. Deep marking
High-speed scanning galvanometer can mark the workpiece white, black, and deep.
7. Computer programming
Printing is automatic, printing English, numbers, Chinese characters, graphics, and the printing content can be changed at will.
8. Multiple fonts
Common one-dimensional barcodes and DatamatrixPDF417 two-dimensional barcodes
| Laser wavelength | 1060nm |
| Laser power | 20w/30w/50w/60w/70w/100w |
| Laser type | Pulsed or continuous |
| Marking depth | ≤0.5mm Marking |
| Line speed | <7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.012mm |
| Marking range | Customizable |
| Repeatability | + 0.002 |

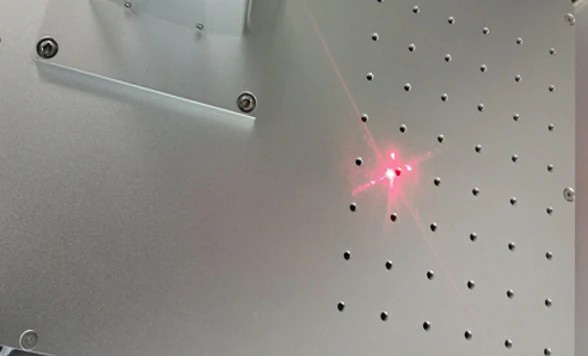

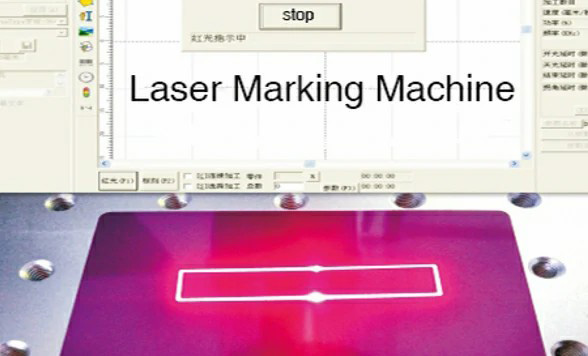

Through visual adjustment of red light, the maximum focal length can be accurately positioned to make the laser beam reach the maximum value.
Red light generates a rectangular frame to clearly show the specific printing range, what you see is what you get.

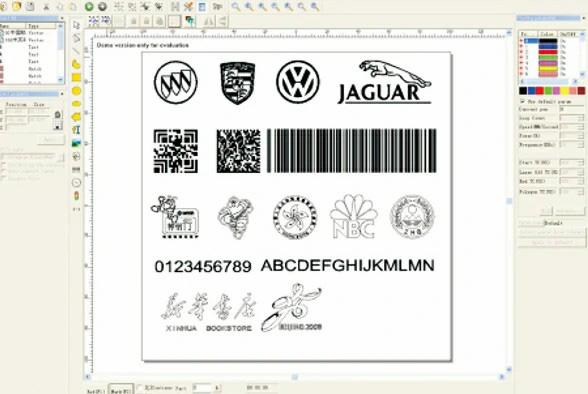

Support PLT, PCX, DXF, BMP and other files, and directly use SHX.TTF library. Support barcode fonts, and can set automatic serial number, date and time according to production needs.

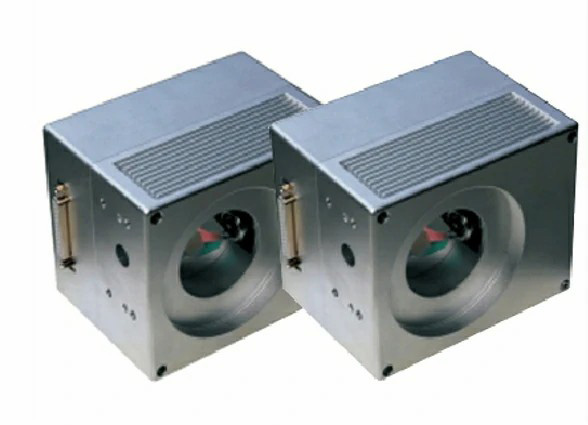

The machine adopts sinogalvo high-speed galvanometer to ensure the stability of the printing process.

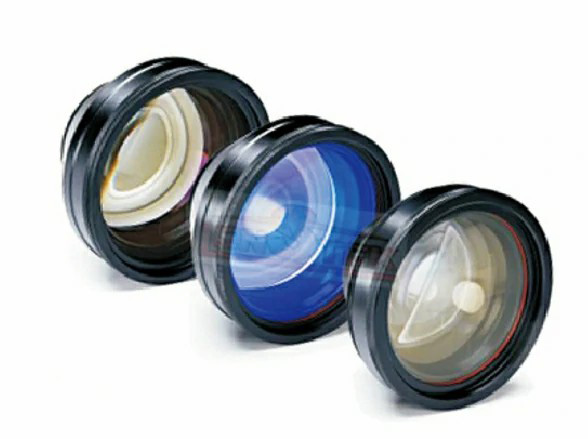

This machine uses Singapore wavelength high transmittance galvanometer. By replacing the galvanometer, the printing range can be adjusted between 12*12cm and 40*40cm.
It is applicable to all metal materials such as steel, iron, copper, aluminum, gold, silver, and some non-metal materials such as PC and ABS. It is mainly used in fields with high requirements for smoothness and fineness, such as electronic products, hardware sanitary ware, watches, jewelry, etc.
Auto Parts Hardware Products
Jewelry Craft Gifts Other
Meet the high-speed production requirements ofautomobile,electronics, medical machinery processing, etc.
